1 2 4 Core Ftth LSZH Fiber Optic Drop Cable For Outdoor Indoor
FTTH Drop Cable is commonly known as indoor hanging wiring cable.
It is mostly single-core and double-core structure. It can also be
made into a 4 or 8 cores structure with a cross-section of
8-shaped. The reinforcement is located at the center of the two
circles. It can be made of metal or non-metal structure. The fiber
is located in the geometric center of the 8-shaped shape. The fiber
in the cable is made of G.657 small bending radius fiber, which can
be laid at a bending radius of 20mm.
Features
● Lighter and small diameter,flame retardant, separated easily and
excellent softness
● Two parallel FRP or metal reinforcements provide good compression
resistance and protect the fiber;
● The cable has the advantages of simple structure, light weight
and strong practicability;
● Unique groove design, easy to peel, easy to connect, simplify
installation and maintenance;
● Low-smoke, halogen-free flame-retardant polyethylene sheath or
flame-retardant PVC sheath for environmental protection;
Hot Model
Sopto fiber optic cable took the first lead to pass the ISO9001
quality system,ISO14001 environment management system, OHSAS18001
occupational health safety management system,and its fiber optical
cable meet the requirements of European CE, RoHs, Chinese TLC
Applications
● For indoor wiring, the end user directly uses the cable;
● Short distance outdoor wiring
Ordering Information
| Cable Type | Product Description | Application |
| GJXFH | Indoor Cabling Bow-Type Drop Cable, Non-metal strength member GFRP;
LSZH jacket; Non-Self-Supporting | Indoor |
| GJXH | Indoor Cabling Bow-Type Drop Cable, Metal strength member; LSZH
jacket; Non-Self-Supporting | Indoor |
| GJYXCH | Outdoor Cabling Bow-Type Drop Cable, Metal strength member; LSZH
jacket; Self-Supporting | Short-distance Aerial |
| GJYXFCH | Outdoor Cabling Bow-Type Drop Cable, Non-metal strength member
KFRP; LSZH jacket; Self-Supporting | Short-distance Aerial |
Double core independent GJYXCH | Outdoor Cabling Bow-Type Drop Cable , Metal strength member; LSZH
jacket; Self-Supporting ；Double core independent | Short-distance Aerial |
| GJYXH03 | Duct Bow-Type Drop Cable, Metal strength member;LSZH inter jacket;
Water blocking tape; PE outer jacket | Duct |
| TBF09 | Φ0. 9 Invisible Tight Buffer Fiber | Indoor |
Indoor Cabling Invisible GJXJH | Indoor Cabling Invisible Bow-Type Drop Cable, Metal strength
member; LSZH jacket; Non-Self-Supporting | Indoor |
| GJYFJCH | Rotundity Drop Cable, Tight buffer fiber structure; Aramid yarn
strength member;LSZH jacket; Self-supporting | Short-distance Aerial |
| GJXFV | Indoor Cabling Bow-Type Drop Cable, Non-metal strength member KFRP;
PVC jacket; Non-Self-Supporting | Indoor |
| GJYXFH03 | Duct Bow-Type Drop Cable, Non-metal strength member; LSZH inter
jacket; Water blocking tape; PE outer jacket | Duct |
| GJYXFDH03 | Duct Bow-Type Drop Cable, Optical fiber ribbon, Non-metal strength
member;LSZH inter jacket; Water blocking tape; PE outer jacket | Duct |
| GJYXFDCH | Outdoor Cabling Bow-Type Drop Cable, Optical fiber ribbon,
Non-metal strength member KFRP; LSZH jacket; Self-Supporting | Short-distance Aerial |
| GJYFXTCBY | Self-Supporting optical cable; Non-metal strength member GFRP;
Water blocking yarn; PE jacket; Oblateness figure | Indoor |

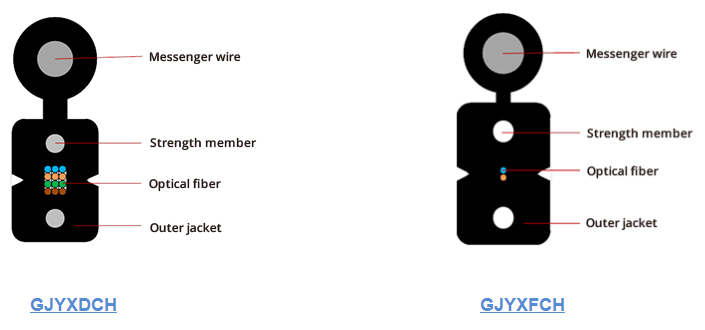

| GJYXDCH | Outdoor Cabling Bow-Type Drop Cable , Optical fiber ribbon,Metal
strength member ;LSZH jacket; Self-Supporting | Short-distance Aerial |
