    1.25G EPON OLT SFP SC 1000BASE-PX20 Fiber Optic Transceiver

    1.25G EPON OLT SFP SC 1000BASE-PX20 Fiber Optic Transceiver


    1.25G Tx / 1.25G Rx SC Interface 1000BASE-PX20 EPON SFP Module with DDM

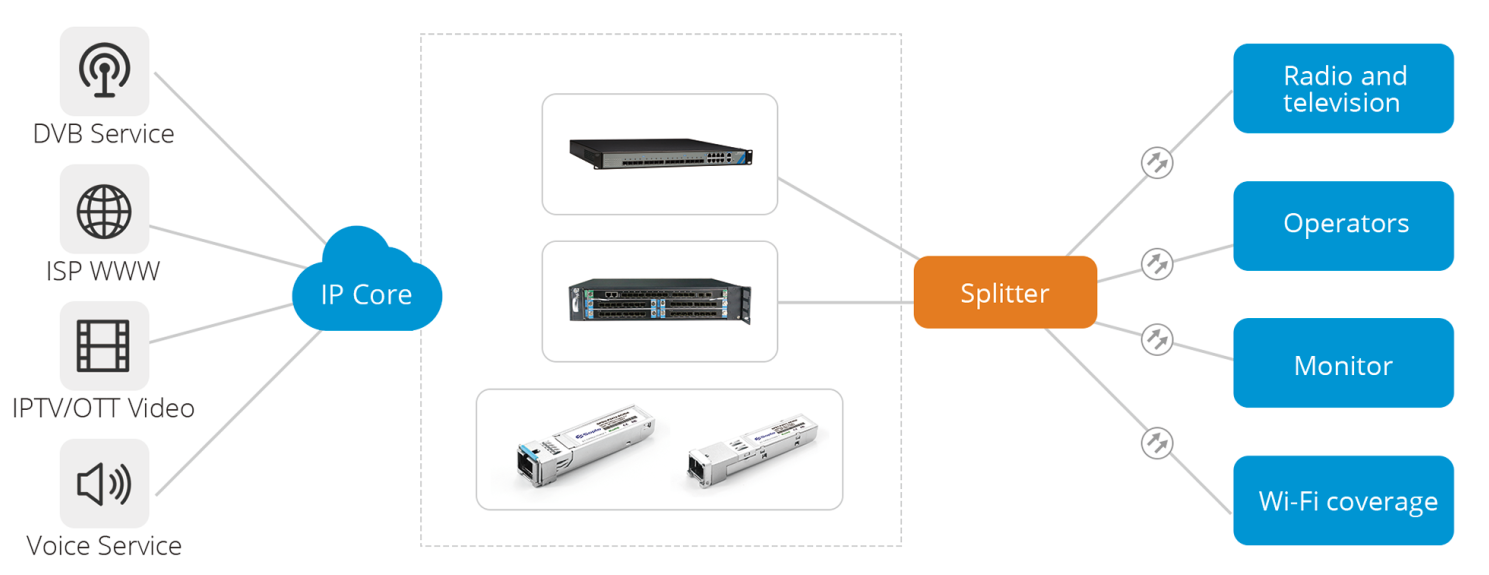

    SOPTO’s EPON SFP is a series of optical transceiver modules operating in Ethernet Passive Optical Networks (EPON). From the Central Office’s (CO) Optical Line Terminal (OLT, with EPON SFP transceiver/module) a single strand of fiber goes out to a passive optical splitter where its signal is multiplied to maximum 64 different lines in EPON. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.


    Features


    Built-in digital diagnostic functions

    ● Single +3.3 Power Supply, Hot-pluggable

    ● Up to 20km distance at 9/125µm G.652 SMF

    Operating Case Temperature: Standard: 0~70°C

    ● SFP Package with SC Interface or Pigtailed, both ONU and OLT series

    ● Ethernet Passive Optical Networks (GEPON or EPON) IEEE 802.3ah standards have defined downstream data rates up to 1.25Gbps.


    Compliant


    ● SFP MSA and SFF-8472

    ● 1000BASE- PX20/PX20+/ PX20++

    Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements of European CE, RoHs

    transceiver certificate.png


    Application


    ● EPON For P2MP Application



    Ordering Information


    PNApplication

    Data Rate

    (Gbps)

    DistanceFiber

    Output Power

    (dBm)

    Sensitivity

    (dBm)

    InterfaceTemp.DDM
    SPT-ET4311-SE2BD

    PON ports of

    EPON OLT

    1.25/1.25PX20SM1.55-28Simplex SC0 to 70℃D
    SPT-ET4311-SE2AD

    PON ports of

    EPON OLT

    1.25/1.25PX20+SM38-30Simplex SC0 to 70℃D
    SPT-ET4311-SE2CD

    PON ports of

    EPON OLT

    1.25/1.25PX20++SM410-30Simplex SC0 to 70℃D
    SPT-EU3411-SE2AD

    PON ports of

    Some EPON ONU

    1.25/1.25PX20+SM0.55-28Simplex SC0 to 70℃D
