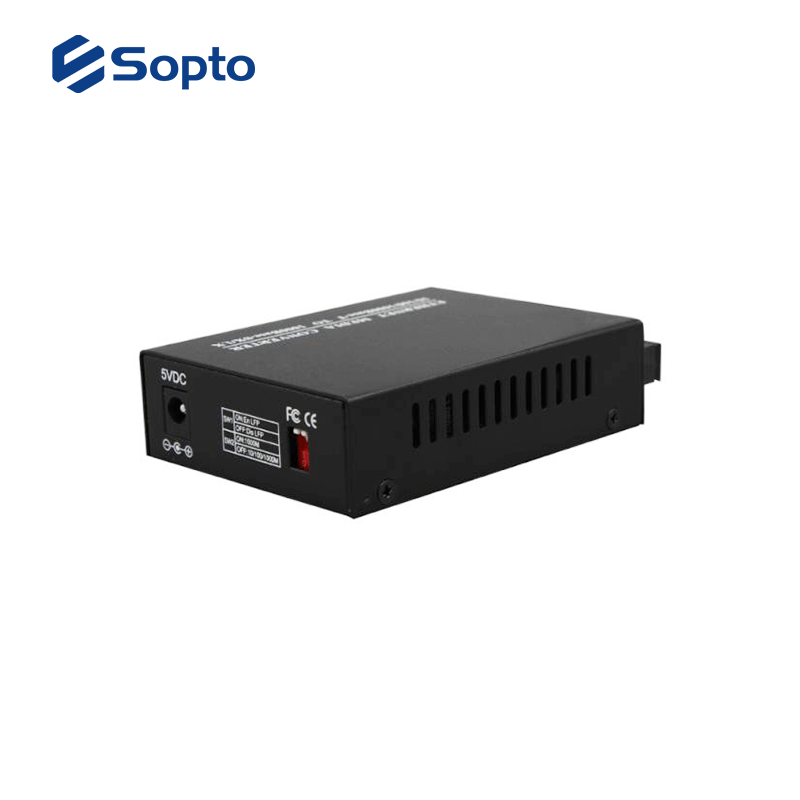

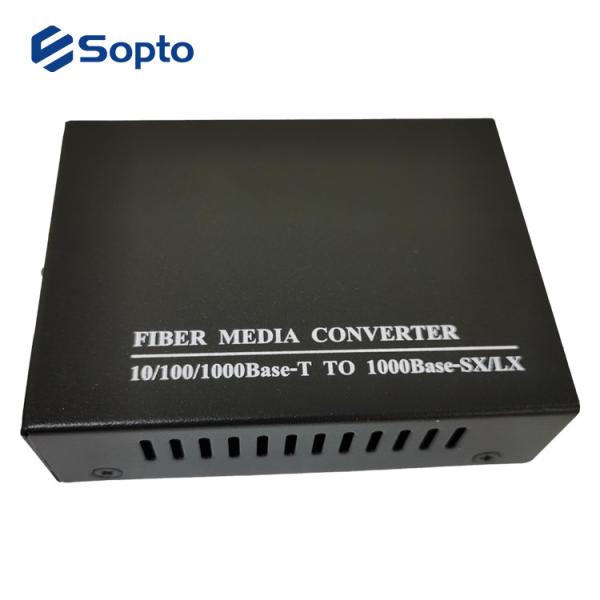

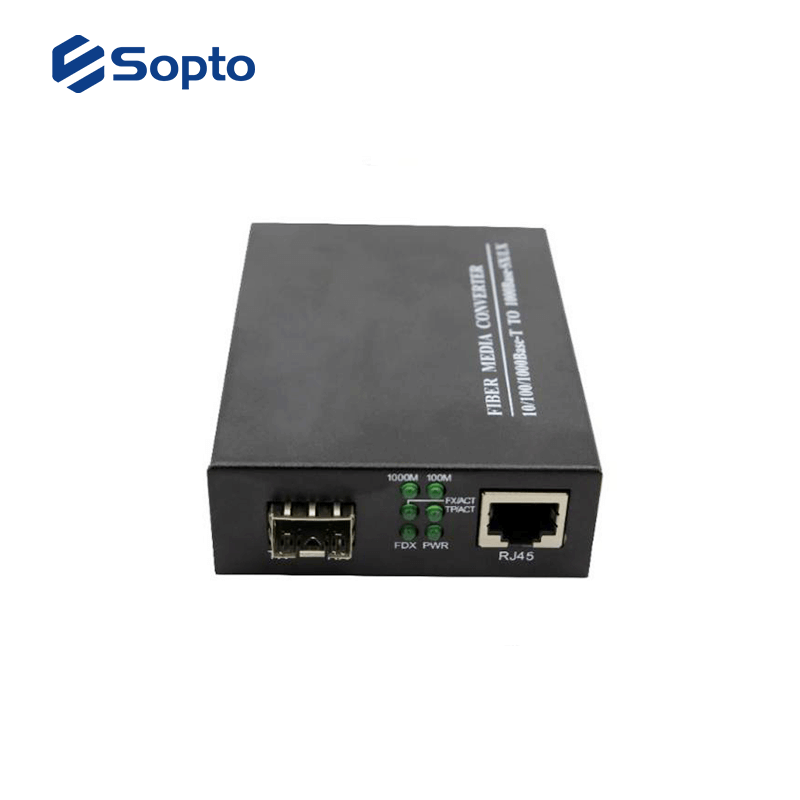

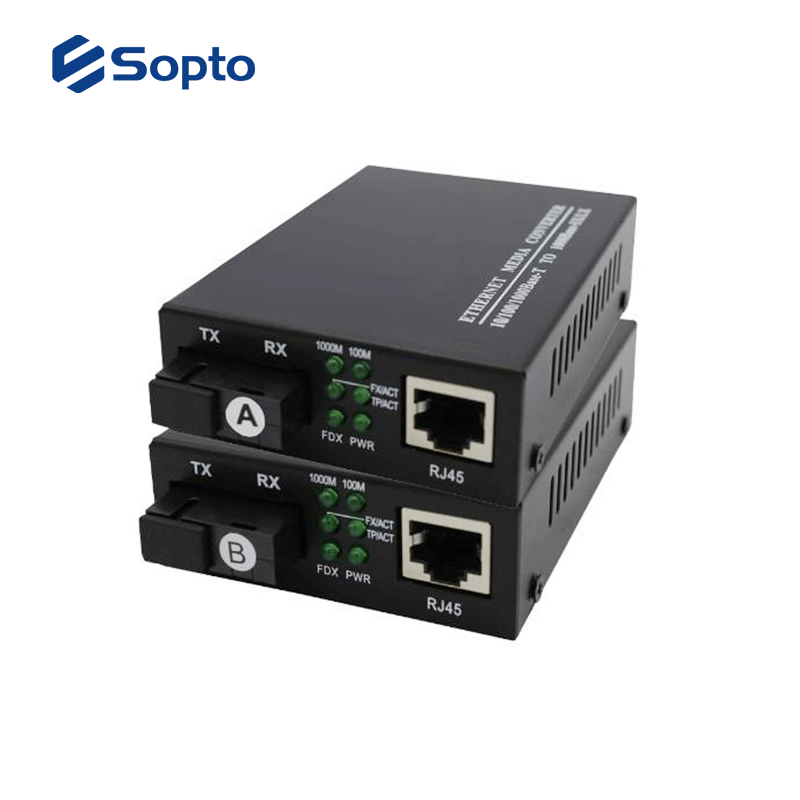

10/100M, 10/100/1000M IEEE802.3ah OAM manageable Ethernet fiber media converter can supervise the real time situation of remote manageable fiber media converter and set the functions. With this system, the response speed of the operator is quickened, the daily maintenance and network expenditure of the operators are reduced, and the serving quality of them is enhanced.

Feature:

l Built-in IP-based Web Interface

l Supporting remote and local management

l Supporting IEEEE 802.3X Frame Flow Control for Full-Duplex mode

l Store and Forward mechanism

l Manual IP address setting/DHCP client for IP address assignment

l SNMP v1 / v2c monitor / private Enterprise MIB

l Event trap and SNMP trap support

l Speed duplex mode configuration / Flow Control setting / bandwidth Control on TP / Fiber port

l Supports Port Status / Ethernet Statistics on both TP and Fiber interface

l Supports Maximum frame size to 9K bytes

l Loop detection / Broadcast / Multicast / Unicast storm control

l Management VLAN / 16 IEEE 802.1Q VLAN groups / Q-in-Q VLAN

l 802.1p Tag Priority / IP address priority / IP DSCP option in

l Quality of Service Mode and Strict Priority / Weighted Round Robin (WRR) QoS policies

l TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test

l 16 TCP / UDP Filter groups

l Firmware upgrade via remote Web interface

l LED indicators for easy network diagnosing

l Internal Power supply optional

Ordering Information:

Factory:

• Advanced dust-free workshop
• Experienced technicians
• Mature production technology
• Standard production process

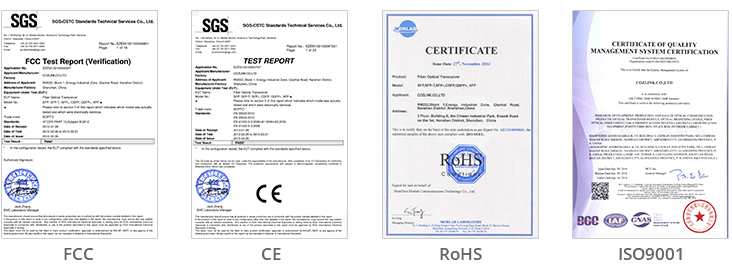

• High Quality with CE, FCC, and RoHS certificates

Packaging:

• 10 unit/package
• 20 units/package
• 200 units/carton

Shipment

• International Express: DHL, FedEx, UPS, TNT and EMS
• Payment Methods: L/C, T/T, Western Union, HSBC, Paypal as well as Cash Payment
• Shipments are usually delivered in 1-3 working days after received payment and 1-3 days after received the PO for the VIP customers.

1. Are you the real manufacturer?

Yes. Sopto is Group background. We are manufacturers of fiber cables, fiber, optic active and passive components, and PON equipment.

2. Do you offer Compatible Services?

Yes, we offer compatible service with Cisco, Nortel, Extreme, Foundry, Alcatel, Allied, HP, 3COM, Juniper, Enterasys....

3. Does sopto accept a small order?

Yes, it is available. Sopto support new projects of our customers and a long-term trustworthy relationship always starts from a small order.

4. What is your delivery time?

It depends on the quantity of the order. Normally we have them in stock, but for the busy season, it takes 1-3 working days.

5. What payment methods do you support?

The methods are followed: T/T, L/C, Western Union and PayPal.

6. Who are your main customers?

All our customers are valuable. We have more than 600 customers worldwide. China Telecom, China Mobile, China Unicom and SOHU are our main domestic customers.
