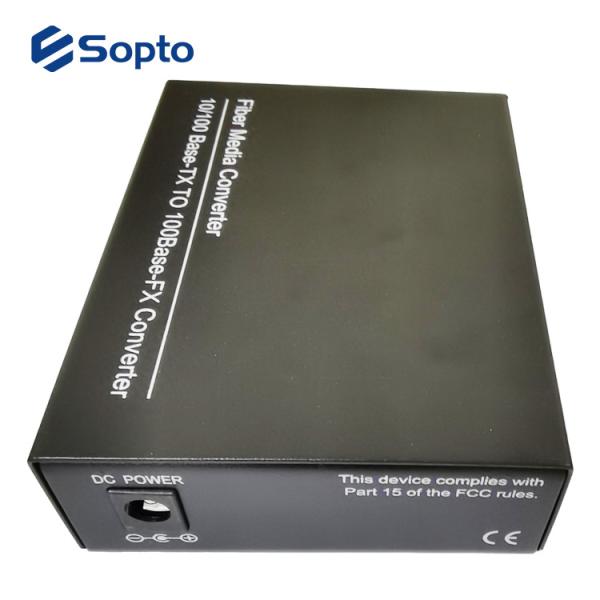

100BASE-TX/FX 20km 40km 60km Gigabit Media Converter

IEEE 802.3x 4 UTP Ports 10/100/1000M Fiber Media Converter

The media converters are designed to transmit and receive data over one optical fiber. The electrical interface will Auto-Negotiate to a 10Mbps, or 100Mbps Ethernet rate without any adjustments. The optical interface operates at a 100Mbps Ethernet rate. LED indicators are provided for rapidly ascertaining equipment operating status.

Key Features

• Complies with IEEE802.3 (10BASE-T) and IEEE802.3u (100BASE-TX/FX) standards
• Auto-negotiation support on RJ45 port
• Auto-Negotiation of duplex(HDX/FDX) on RJ45 port
• Electrical port supports Auto-Negotiation for 10Mbps or 100Mbps, full duplex or half duplex data.
• Auto MDI/MDI-X support on RJ45 port
• Distances up to: 2 km Multimode, 120 km Single Mode
• ST, SC, FC optical connectors
• Status LED's for TX,FX LINK/ACT, POWER,100M to easily monitor network status
• High quality Chip Set : RealTek 8306E
• External power adapter

Applications

• Access Control Systems
• Building and Environmental Control Systems
• Tamper Switch
• 10/100 Mbps Ethernet Media Converter
• High Speed Computer Links

Technical Specifications

Parameters	Specifications
Standards	IEEE802.3u (100Base-TX/FX), IEEE 802.3 (10Base-T)
Wavelength	Dual Fiber: 850nm (550m); 1310 nm (2,20,40,60km); 1550 nm (80,100,120km); Single Fiber: 1310 nm and 1550 nm (20,40,60km ); 1490 nm and 1550 nm (80,120km );
Transmission Distance	550m to 120km
Port	One RJ45 port One Fiber port (ST/SC/FC Optional)
MDI/MDI-X	Auto selection
MAC Address Table	1K
Buffer Size	1Mbit
Flow Control	Duplex:flow control ; Half duplex:back pressure
Time Delay	Store-and-forward:9.6us,Straight-through:0.9us
BER	<1/1000000000
Power Supply	Output Power : 5 V DC 1 A Input power: 100 V to 265V AC 50 Hz to 60 Hz
Operating Temp.	0 °C to +70 °C
Storage Temp.	-20 °C to +80 °C
Relative Humidity	5% to 90% (non-condensing)
Dimensions	95 mm × 70 mm × 25 mm
Net Weight	0.165 kg

if you need more information,please contact us.
