10G Single Fiber BIDI XFP Optical Transceiver with Distance up to
80km over SMF
Sopto 10G BIDI XFP transceivers are designed for bi-directional 10G
serial optical data communications such as IEEE 802.3ae 10GBASE-BX
by using 1330(1270nm) transmitter and 1270(1330) nm receiver. Sopto
supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.)
compatible fiber optic transceivers.
Features
● Simplex LC Interface
● Built-in digital diagnostic functions
● 1270nm&1330nm or 1490nm&1570nm
● Up to 11.3 Gbps Bi-directional Data Links
● Single Fiber BIDI XFP Optical Transceiver
● Transmission distance up to 80km over SMF
● Supports Multi-Protocol 8.5Gb/s, 9.95Gb/s to 11.3Gb/s bit rates
● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C;
Industrial: -40~85°C
Compliant
● RoHS-6
● SFF-8472
● XFP MSA
● IEEE 802.3ae 10GBASE-BX or SDH/SONET standards
Sopto fiber optic transceiver took the first lead to pass the
ISO9001 quality system, the requirements of European CE, RoHS
Digital Diagnostic Functions
As defined by the XFP MSA 1, FTTX’s XFP transceivers provide
digital diagnostic functions via a 2-wire serial interface, which
allows real-time access to the following operating parameters:
● Transceiver temperature
● Laser bias current
● Transmitted optical power
● Received optical power
● Transceiver supply voltage
It also provides a sophisticated system of alarm and warning flags,
which may be used to alert end-users when particular operating
parameters are outside of a factory-set normal range.
The operating and diagnostics information is monitored and reported
by a Digital Diagnostics Transceiver Controller (DDTC) inside the
transceiver, which is accessed through the 2-wire serial interface.
When the serial protocol is activated, the serial clock signal (SCL
pin) is generated by the host. The positive edge clocks data into
the XFP transceiver into those segments of its memory map that are
not write-protected. The negative edge clocks data from the XFP
transceiver. The serial data signal (SDA pin) is bi-directional for
serial data transfer. The host uses SDA in conjunction with SCL to

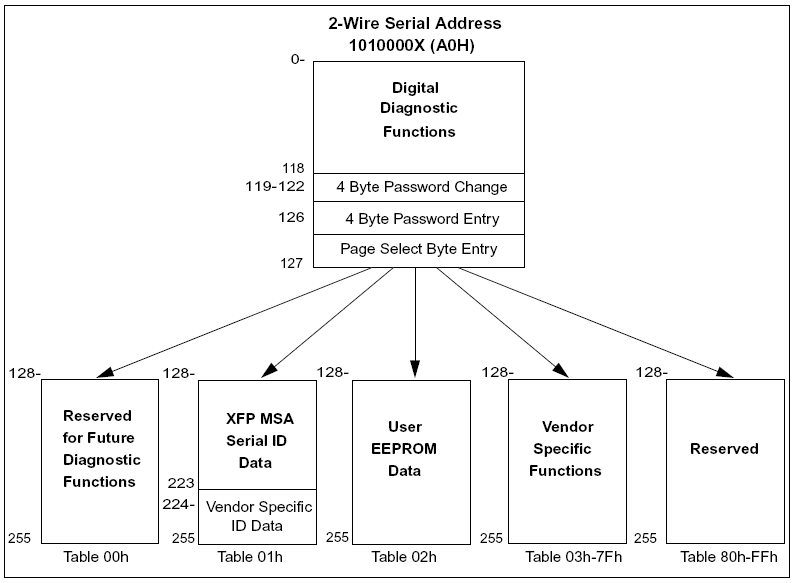

mark the start and end of serial protocol activation. The memories
are organized as a series of 8-bit data words that can be addressed
individually or sequentially. The 2-wire serial interface provides
sequential or random access to the 8 bit parameters, addressed from
000h to the maximum address of the memory.
For more detailed information including memory map definitions,
please see the XFP MSA Specification.
Recommended Host Board-Power Supply Circuit
Recommended High-speed Interface Circuit
Mechanical Dimensions
All optical transceivers are RoHS compliant and could be 100%
compatible with branding equipment, such as Cisco, Extreme, Juniper, HP, H3C, Linksys, Huawei, Alcatel-Lucent,
Foundry, Nortel, Force10 etc.
Applications
● SONET OC-192 / SDH STM-64
● OTN ITU-T G.709
● 10GBASE-SR/LR/ER/ZR Ethernet
● 10X/8X/4X/2X/1X Fibre Channel
Order Information
| PN | Data Rate (Gbps) | Distance | Fiber | Output Power (dBm) | Sensitivity (dBm) | Interface | Temp. | DDM |
SPT-XB2733TG-L10 SPT-XB3327TG-L10 | 9.95~11.3 | 10km | SM | -6～-1 | -15 | Simplex LC | 0-70℃ | D |
SPT-XB2733TG-L20 SPT-XB3327TG-L20 | 9.95~11.3 | 20km | SM | -3～2 | -15 | Simplex LC | 0-70℃ | D |
SPT-XB2733TG-L40 SPT-XB3327TG-L40 | 9.95~11.3 | 40km | SM | 0～5 | -17 | Simplex LC | 0-70℃ | D |
SPT-XB2733TG-L60 SPT-XB3327TG-L60 | 9.95~11.3 | 60km | SM | 1～5 | -21 | Simplex LC | 0-70℃ | D |
SPT-XB2733TG-L80 SPT-XB3327TG-L80 | 9.95~11.3 | 80km | SM | >1 | -22 | Simplex LC | 0-70℃ | D |
