Fiber Closure Vertical type96 Cores Max , 24 Cores Splice Tray 4 IN
4 OUT Hot melt sealing
Fiber Closure Vertical type 96 Cores Max , 24 Cores Splice Tray 4
IN 4 OUT Hot melt sealing is a into six out type heat sealing cap
type optical fiber cable connector box, suitable for Ф 7 -Ф 22
cable in and out, is suitable for aerial, wall-mounting
applications, Pole-mounting ,differences in place.The box body and
the base are sealed with the silicone rubber. The cable seal is
sealed with a heat shrinkable tube.
Features

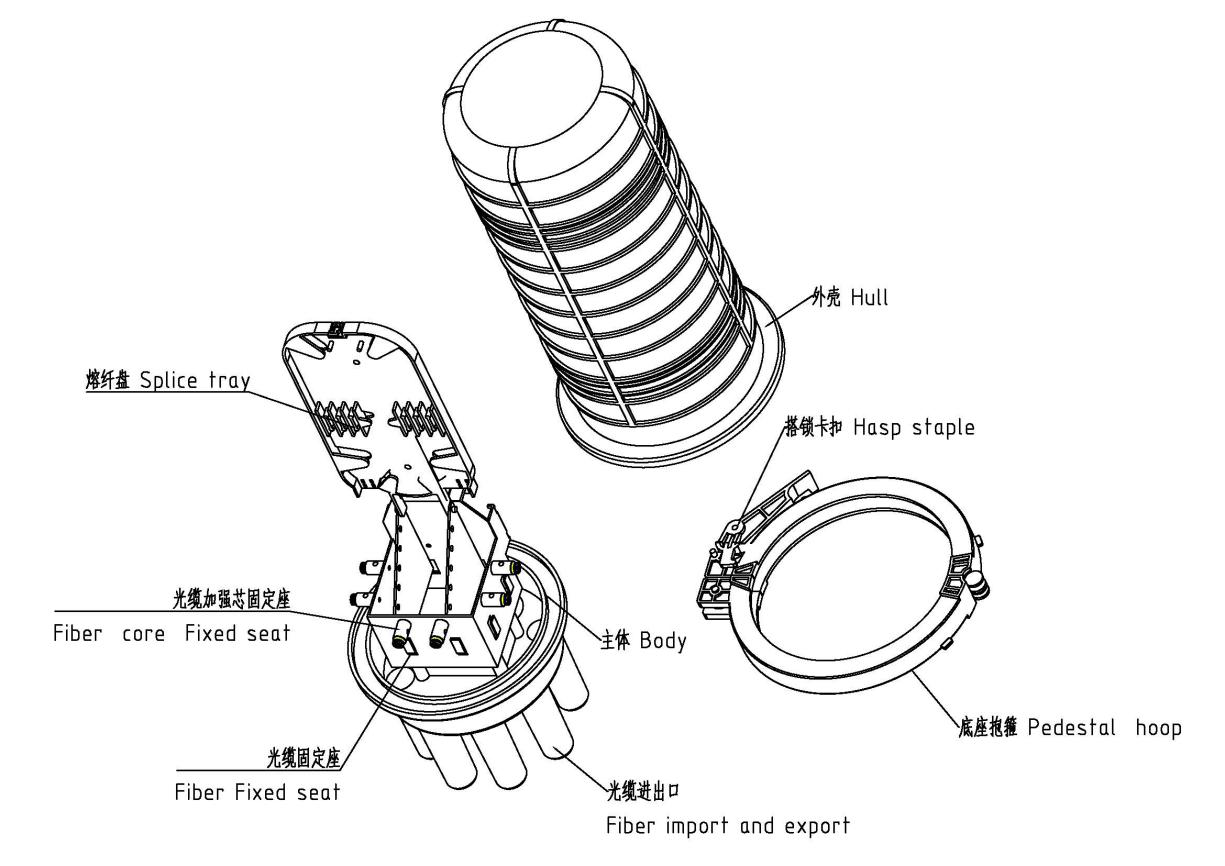

● The fiber optic splice closure consists of cover,pedestal,splice
tray,hoop,optical cable storage box.
● The cable entry ports are sealed with heat shrinkable tube.
● This is single fiber splice closure, it provide with one
elliptical port and 6 round ports.The elliptical port, which can
hold two stick optical cables.
● The case body is made from imported high-intensity engineering
plastics(PP) and formed the shape with mould plastics under high
pressure. With the advantages of less weight, high mechanical
intensity, corrosive-resistance, anti-thunderstruck and long
service life.
● Equipped with air - core and installation
| Item | Parameter |
| Type | SPFC-NV-XXH-4/4F |
| External Size | Φ230×440mm |
| Net weight | 2.7kg |
| Cable ports | One elliptical port and 6 round ports. |
| Way to install | Pole-mounting /Wall-mounting/Aerial installation lWall-mounting |
| Cable diameter | Φ7~Φ22 |
| Capacity of splice tray | 24 single fiber |
| Sealing structure | Heat shrinkable sealing structure silicon gum material |
| Max. Number of Trays | 4 |
| Max Capacity | 96 single fiber； |
| Work Temperature | -40 °C ~+60°C |
| Voltage resistance strength | 15 kv dc, 1 minute no breakdown, no flash over phenomenon. |
| Insulation resistance | ≥2×104MΩ |
| Tensile force | ²≥800N |
| Sealing | inflatable make the internal pressure of 100 kpa, into the water to
observe more than 15 min, airless bubble generation, air pressure
is not falling. |
| Impact strength | impact energy under16N.m, impact times for 3 times, no cracks |
Applications
● Telecommunication subscriber loop
● Fiber to the home (FTTH)
● LAN/WAN
Ordering Information
| Model | Description | Size | Package | Weight/ carton |
| SPFC-NV-96H-4/4F | Fiber Closure Vertical type96 Cores Max , 24 Cores Splice Tray 4 IN
4 OUT Hot melt sealing type F | Φ230×440mm | 540*485*465/4PCS | 12.5KG/4个 |
Note: If you need more customized services, please contact us.
