DWDM system supports ultra-long-haul transmission via a single
fiber, coupled with DWDM MUX/DEMUX and OADM with speed protocols of
up to 100G/200G per channel.
The DWDM passive Mux/Demux modules deliver the benefits of a Dense
Wave Division Multiplexer in a fully passive solution. They are
designed for long-haul transmission where wavelengths are packed
tightly together over the C-band range of wavelengths, up to 48
wavelengths in 100GHz grid(0.8nm) and 96 wavelengths in 50GHz
grid(0.4nm). ITU G.694.1 standard and Telcordia GR1221, GR1209, CE,
RoHS, FCC are compliant.
SOPTO DWDM Mux/Demux are modular, scalable and are perfectly suited
to transport PDH, SDH / SONET, ETHERNET services over WWDM, CWDM
and DWDM in optical metro edge and access networks.
Mux/Demux can increase your network capacity combined with SOPTO
Multiservice Transport Device(Such as EDFA,DCM, OEO and so on),
which can improve the manageability and interconnectivity of WDM
Network.

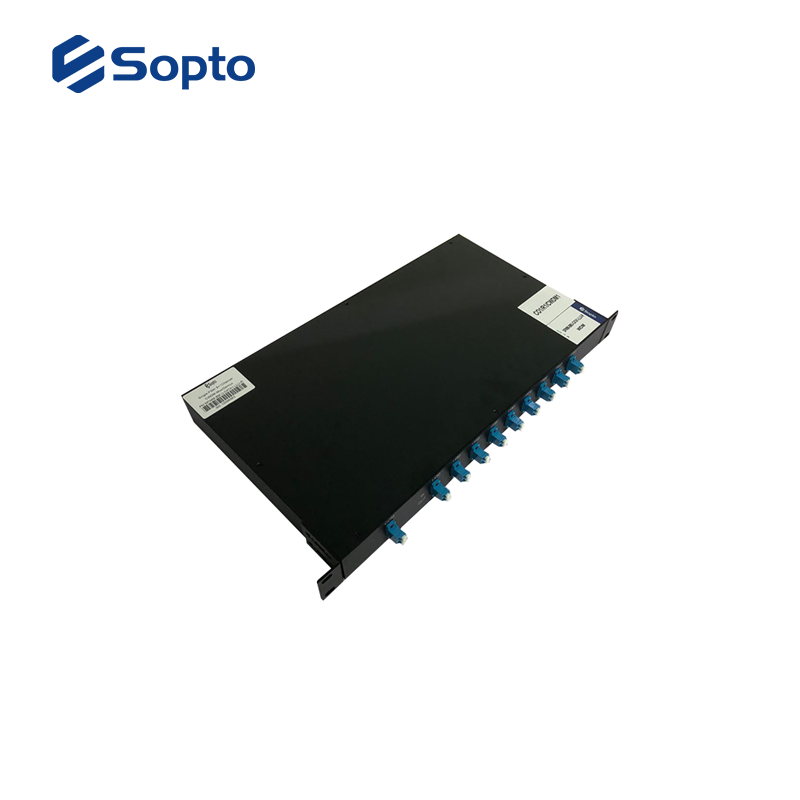

SOPTO provides 2 different package options for DWDM MUX/DEMUX,
including 1U 19inch Rack Fixed and LGX box.The LGX box can be
installed into a matching 19-inch LGX chassis .
Features
>Low insertion loss
>Based on thin-film filter or AWG technology
>DWDM 100GHz or 50GHz ITU Channel Spacing,C17-C61 & H17-H61 , X channels over Single or Duplex fiber
>LC/SC/FC/ST, UPC/APC Interface are available
>Rate transparent for applications up to 10Gbps
>Monitor/Upgrade/1310nm Express port for external functions
>Completely passive, no electric power required
>Low-profile modular LGX box design optional, fits in LGX chassis
Applications
>DWDM Network
Specifications
Parameter | Unit | Specification |
Operating Wavelength Range | nm | 1500 ~ 1600 |
Channel Number | - | X+UPG |
Center Wavelength | nm | Customer specified X wavelengths ,such as C53 C54 C55 C56 C57 C58
C59 C60 (X=8) etc |
Channel Spacing | GHz | 100 |
Channel Passband(@-0.5dB) | nm | ≥0.11 |
PDL | dB | ≤0.2 |
Directivity | dB | ≥50 |
Return Loss | dB | ≥45 |
Operating Temperature | ℃ | -10 to +70 |
Storage Temperature | ℃ | -40 to +85 |
Fiber Type | G657A1 Fiber |
Connector Type | LC/UPC or others |
Communication Type | Single or Dual Fiber |
Optional functions | 1310 Express port: 1310+/-40nm; Upgrade port: Unused wavelength section; Moniter port: 1%; |
Packaging Dimension | DWDM Module :100*80*10.5;140*115*18; 1*2 WDM filter:Φ5.5*38;90x20x10 |
Note:The specific parameters are subject to the product
specifications.
Ordering Information
Ordering Info. for DWDM MUX/DEMUX |
Part Number:SPWM-16XM-41A1-LLU-R 1 23 456 789 1011
Product Description:DWDM 100GHz Mux/Demux Dual Fiber 19inch Rack Fixed 2×16 wavelengths
C41-C56 G.657.A1 LC/UPC |
1 - Number of wavelengths | 8:8 wavelengths; 16:16 wavelengths; 40:40 wavelengths; etc |
2 - Type | XM:100GHz DWDM Mux/Demux; WM:50GHz DWDM Mux/Demux; |
3 - Optional functions | E:1310nm Express port; F:1550nm port; M:Moniter port; U:Upgrade
Port |
4 - First wavelength | XX:XX refers to the Channel Number;
17: 1563.86 nm (channel 17); 45:1541.35(channel 45); etc
Range: 1528.77 nm (channel 61) to 1563.86 nm (channel 17) |
5 - Communication Type | S:Single fiber; Null:Dual fiber; |
6 - Fiber Type | D:G.652D; A1:G.657.A1; |
7 - COM ports | L :LC; S:SC; F:FC; |
8 - Other ports | L :LC; S:SC; F:FC; |
9 - Endface | U :UPC polish; P :PC polish; A :APC polish |
10 -Package | L:LGX; R:19inch Rack Fixed; 2LR:19inch Rack with 2 LGX box; |
11 - Height | Null:1U; 2:2U; 3:3U; etc |
