1 ~ 8 x 10 / 100 or 10 / 100 / 1000Mbps RJ45 Port Industrial Fiber Media converter
The industrial Fiber media converter, which can also be called industrial fiber switch, operating temperature-40 ℃ to + 85 ℃, support wide voltage dual power input, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation.
Features
● 1 ~ 8 x 10/100 or 10/100/1000Mbps Auto-sensing RJ45 ports
● 1 ~ 4 x SC fiber ports or SFP ports
● POE optional, Max power to15.4W under af standard, 30W under at standard to each PoE port
● 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
● Support Auto MDI/MDIX
● Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
● IEEE 802.3 100Base-T or IEEE 802.3u 1000Base-TX compliant
● A store-and-forward switching mechanism
● Operating environment temperature:-40 ° ~ 85 ℃
● Management function optional

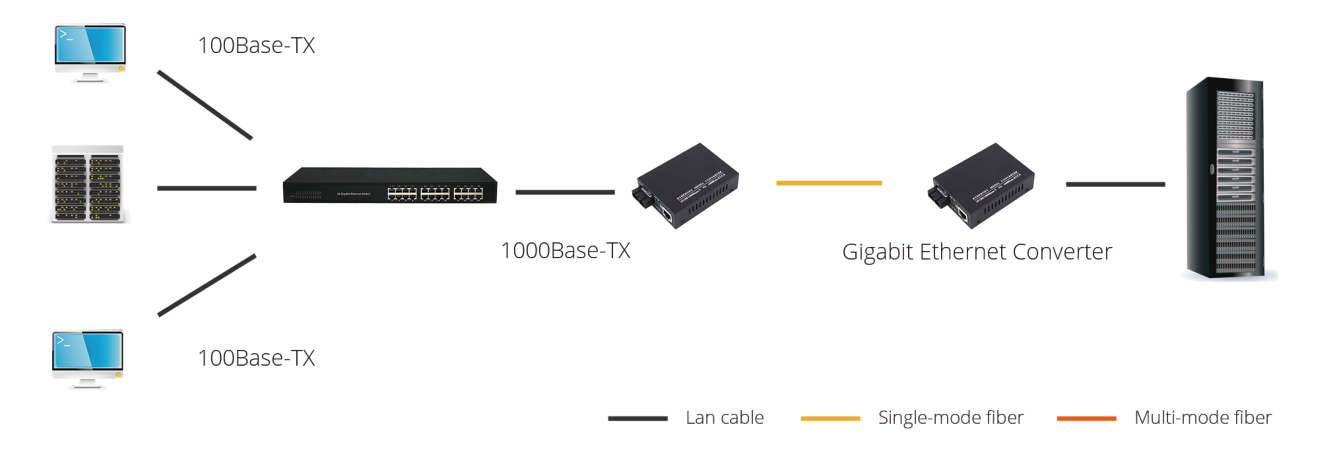

Applications
● LAN/WAN
● Access Control Systems
● Building and Environmental Control Systems
● Ethernet
Ordering Information
| Part No. | Fiber Port | Port Rate (Mbps) | Port No. | RJ45 Rate (Mbps) | RJ45 No. | POE | Manage-ment | Distance (km) | Power Supply | Temp. |
| SFP |
| SPM-E(1X)T4X-PXT | SFP | 100 | 1 | 10/100 | 1~4 optional | No | No | - | External 220V AC | -40~85 ℃ |
| SPM-E2XT4X-PXT | SFP | 100 | 2 | 10/100 | 2~6 optional | No | No | - | External 20V AC | -40~85 ℃ |
| SPM-EE(1X)T4X-PXT | SFP | 100 | 1 | 10/100 | 1~4 optional | PSE af | No | - | External 220V AC | -40~85 ℃ |
| SPM-EE2XT4X-PXT | SFP | 100 | 2 | 10/100 | 2~6 optional | PSE af | No | - | External 220V AC | -40~85 ℃ |
| SPM-E(1X)T2X-PXT | SFP | 1000 | 1 | 10/100/1000 | 1~8 optional | No | No | - | External 220V AC | -40~85 ℃ |
| SPM-E2XT2X-PXT | SFP | 1000 | 2 | 10/100/1000 | 2~8 optional | No | No | - | External 220V AC | -40~85 ℃ |
| SPM-E4XT2X-PXT | SFP | 1000 | 2 | 10/100/1000 | 4~8 optional | No | No | - | External 220V AC | -40~85 ℃ |
| SPM-EE(1X)T2X-PXT | SFP | 1000 | 1 | 10/100/1000 | 1~8 optional | PSE af | No | - | External 220V AC | -40~85 ℃ |
| SPM-EE2XT2X-PXT | SFP | 1000 | 2 | 10/100/1000 | 2~8 optional | PSE af | No | - | External 220V AC | -40~85 ℃ |
| SPM-EE2XT2X-PXT | SFP | 1000 | 4 | 10/100/1000 | 4~8 optional | PSE af | No | - | External 220V AC | -40~85 ℃ |
| SPM-EM(1X)T2X-PXT | SFP | 1000 | 1 | 10/100/1000 | 1~8 optional | No | Yes | - | External 220V AC | -40~85 ℃ |
| SPM-EM2XT2X-PXT | SFP | 1000 | 2 | 10/100/1000 | 2~8 optional | No | Yes | - | External 220V AC | -40~85 ℃ |
| SPM-EM2XT2X-PXT | SFP | 1000 | 4 | 10/100/1000 | 4~8 optional | No | Yes | - | External 220V AC | -40~85 ℃ |
| SPM-EEM(1X)T2X-PXT | SFP | 1000 | 1 | 10/100/1000 | 1~8 optional | PSE af | Yes | - | External 220V AC | -40~85 ℃ |
| SPM-EEM2XT2X-PXT | SFP | 1000 | 2 | 10/100/1000 | 2~8 optional | PSE af | Yes | - | External 220V AC | -40~85 ℃ |
| SPM-EEM2XT2X-PXT | SFP | 1000 | 4 | 10/100/1000 | 4~8 optional | PSE af | Yes | - | External 220V AC | -40~85 ℃ |
| 1*9 ,SC |
| SPM-E(1X)T4X-NXXST | 1*9 SC | 100 | 1 | 10/100 | 1~4 optional | No | No | 20~100 optional | External 220V AC | -40~85 ℃ |
| SPM-E2XT4X-NXXST | 1*9 SC | 100 | 2 | 10/100 | 2~6 optional | No | No | 20~100 optional | External 220V AC | -40~85 ℃ |
| SPM-EE(1X)T4X-NXXST | 1*9 SC | 100 | 1 | 10/100 | 1~4 optional | PSE af | No | 20~100 optional | External 220V AC | -40~85 ℃ |
| SPM-EE2XT4X-NXXST | 1*9 SC | 100 | 2 | 10/100 | 2~6 optional | PSE af | No | 20~100 optional | External 220V AC | -40~85 ℃ |
| SPM-E(1X)T2X-NXXST | 1*9 SC | 1000 | 1 | 10/100/1000 | 1~2 optional | No | No | 20~100 optional | External 220V AC | -40~85 ℃ |
| SPM-E2XT2X-NXXST | 1*9SC | 1000 | 2 | 10/100/1000 | 2~6 optional | No | No | 20~100 optional | External 220V AC | -40~85 ℃ |
| SPM-EE(1X)T2X-NXXST | 1*9 SC | 1000 | 1 | 10/100/1000 | 1~2 optional | PSE af | No | 20~100 optional | External 220V AC | -40~85 ℃ |
| SPM-EE2XT2X-NXXST | 1*9 SC | 1000 | 2 | 10/100/1000 | 2~6 optional | PSE af | No | 20~100 optional | External 220V AC | -40~85 ℃ |
