    LC/LC Fiber Optic Connectors Female To Female With High Reliability & Stability

    Ask Lasest Price
    Brand Name : Sopto
    Model Number : SPAD-LCF-LCF-U-SS-PES
    Supply Ability : 20000 Piece/Pieces per Month
    Price : $0.28
    • Product Details
    • Company Profile

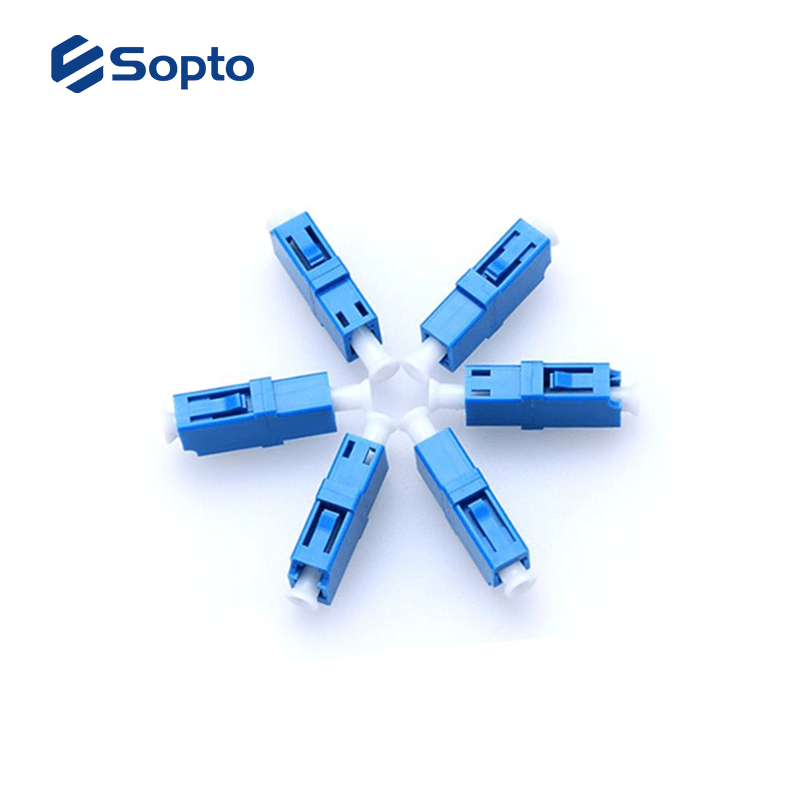

    LC/LC Fiber Optic Connectors Female To Female With High Reliability & Stability

    fiber connector LC/LC Female to Female UPC SM Plastic shell with Ears with Spring strip with Window Asymm

    Product Description

    Sopto fiber optic adapters are used in fiber optic connection, the typical use is to provide a cable to cable fiber connection. people sometimes also name them to be mating sleeves and hybrid adapters, mating sleeves means this fibre optic adapter is used to connect the same type fiber optic connectors, while hybrid adapters are the fiber optic adapter types used to connect different kinds of fiber optic connectors. SOPTO fiber optic adapters have a name for its stability.

    Features

    >Low insertion loss, high return loss

    >Good compatibility

    >High precision of mechanical dimensions

    >High reliability & stability

    >Ceramic or Bronze Sleeve

    >Simplex / Duplex

    Applications

    >Local Area Network

    >CATV System

    >Telecommunication Networks

    >Equipment Test

    Specifications

    Parameter

    Unit

    LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU

    SM

    MM

    PC

    UPC

    APC

    PC

    Insertion Loss (Typical)

    dB

    ≤0.3

    ≤0.2

    ≤0.3

    ≤0.2

    Return Loss

    dB

    ≥45

    ≥50

    ≥60

    ≥30

    Exchangeability

    dB

    ≤0.2

    Repeatability

    dB

    ≤0.2

    Durability

    Time

    >1000

    Operating Temperature

    -40~75

    Storage Temperature

    -45~85


    Ordering Information

    Ordering Info. for Adaptor

    Part Number:SPAD - SC F - SC F - A -S S- P E S

    1 2 3 4 5 6 7 8 9 10
    Product Description:Adaptor Simplex SC Female/SC Female APC SM Plastic shell with Ears with Spring strip

    1 - Connector A

    LC SC FC ST etc

    2 - Connector A Type

    F:Female ; M:Male

    3 – Connector B

    LC SC FC ST etc

    4 – Connector B Type

    F:Female ; M:Male

    5 - Endface

    U:UPC polish; P:PC polish; A:APC polish

    6 - Communication Type

    S:Simplex; D:Duplex; Q:Quadruple ; Null: Multicores

    7 - Adapted Fiber Type

    S:SM; M:MM ; Null:not Specified

    8 -Shell Material

    P:Plastic; PM:Half Plastic Half Metal; M;Metal

    9 -Structure 1

    E:with Ears; Null:without Ears

    10 - Structure 2

    S:with Spring strip; Null:without Spring strip

    1536

    Company Information


    Packaging & Shipping

    .png

    Certifications

    .png

    FAQ

    1. Are you the real manufacturer?

    Yes. Sopto is Group background. We are manufacturers of fiber cables, fiber, optic active and passive components, and PON equipment.

    2. Do you offer Compatible Services?

    Yes, we offer compatible service with Cisco, Nortel, Extreme, Foundry, Alcatel, Allied, HP, 3COM, Juniper, Enterasys....


    3. Does sopto accept a small order?

    Yes, it is available. Sopto support new projects of our customers and a long-term trustworthy relationship always starts from a small order.


    4. What is your delivery time?

    It depends on the quantity of the order. Normally we have them in stock, but for the busy season, it takes 1-3 working days.


    5. What payment methods do you support?

    The methods are followed: T/T, L/C, Western Union and PayPal.


    6. Who are your main customers?

    All our customers are valuable. We have more than 600 customers worldwide. China Telecom, China Mobile, China Unicom and SOHU are our main domestic customers..png
