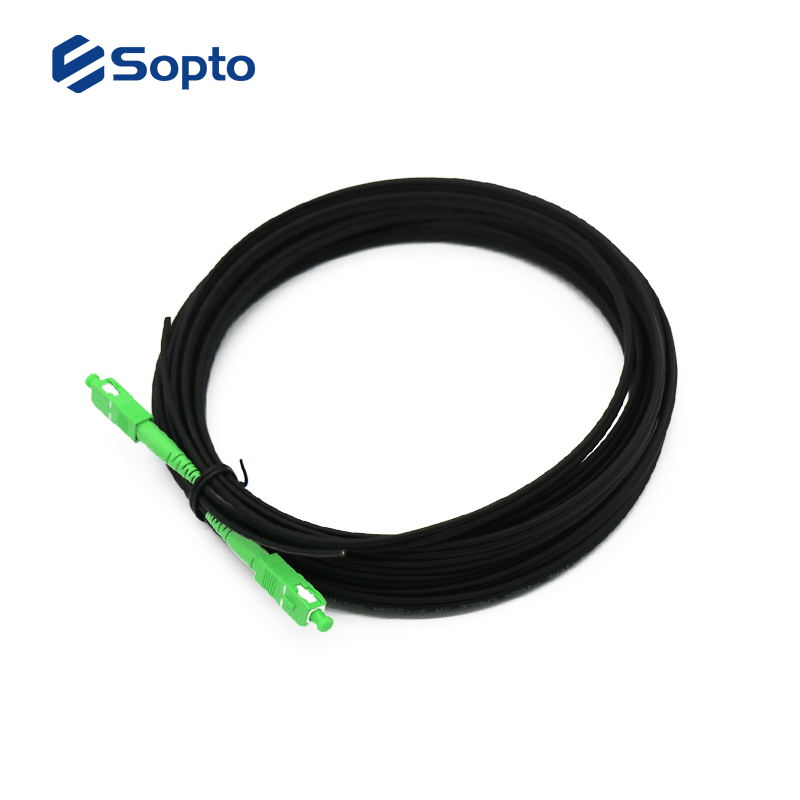

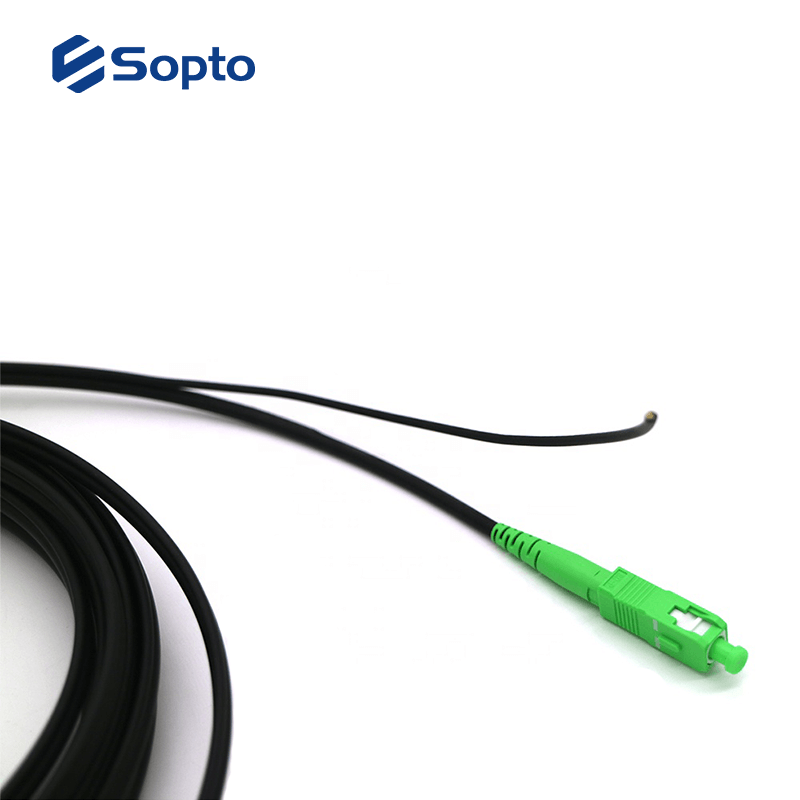

FTTH Drop Cable patch cords have been widely applied in FTTX. It can also be used for short distance outdoor connections.

SOPTO can supply FTTH drop cable patch cords which are made from standard FTTH drop cables. The FTTH drop cable patch cords are terminated with fiber optic connectors on both ends. It is really easy and convenient to operate in FTTH Buildings; you just need to push the connector to the Adapters.

>Indoor Cabling Bow-Type GJXH,GJXFH,GJXV,GJXFV optional

>Outdoor Cabling Bow-Type GJYXFCH,GJYXCH,GJYXCV,GJYXFCV optional

>UPC and APC available for the connectors

>G.652D,G.657A1,G.657A2 or MM optional

>1/2/4 more cores are available

>Push/pull mating for quick installation

>High density and compact size

>High return loss

>Loss insertion loss

>FTTH

>LAN

>Telecommunication Network

End Face Type: PC/APC/UPC/Plat Polish

Connector Type: FC/SC/LC/ST/ MTRJ/ DIN/E2000

Operating Wavelength: 850nm/1310nm/1550nm

Length: 0.5m/1m/2m/3m/5m/7m/12m or customer specified

Insertion loss: ≤0.3dB

Return loss: ≥35dB

Interchangeability: ≤0.2dB

Repeatability: ≤0.2dB

Insert-pull test: 100times, 0.3dB

Fiber Diameters: 9/125µm SM; 62.5/125/µm, 50/125µm MM

Fiber Type: SM, MM, OM1, OM2, OM3, OM4, duplex, simplex

Material Feature: PVC/LSZH

Storage Temperature: -40~+85°C

Operating Temperature: -25~+85°C

Storage Humidity: 95%RH (Non-Packaging)

1. Are you the real manufacturer?

Yes. Sopto is Group background. We are manufacturers of fiber cables, fiber, optic active and passive components, and PON equipment.

2. Do you offer Compatible Services?

Yes, we offer compatible service with Cisco, Nortel, Extreme, Foundry, Alcatel, Allied, HP, 3COM, Juniper, Enterasys....

3. Does sopto accept a small order?

Yes, it is available. Sopto support new projects of our customers and a long-term trustworthy relationship always starts from a small order.

4. What is your delivery time?

It depends on the quantity of the order. Normally we have them in stock, but for the busy season, it takes 1-3 working days.

5. What payment methods do you support?

The methods are followed: T/T, L/C, Western Union and PayPal.

6. Who are your main customers?

All our customers are valuable. We have more than 600 customers worldwide. China Telecom, China Mobile, China Unicom and SOHU are our main domestic customers.
